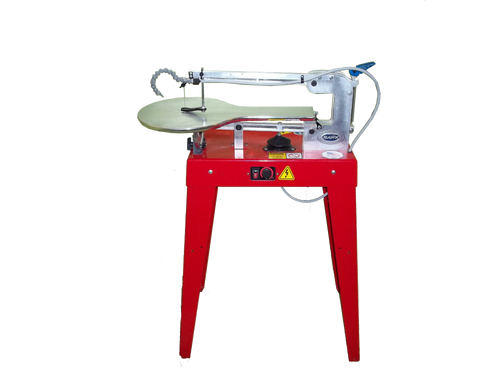

BM-26 Precision Scroll Saw

American made and engineered to reduce vibration and run quietly.

SPECIFICATIONS OF THE BM-20

Throat Capacity                    26"

Maximum Cutting Thickness   2 5/8"

Cutting Strokes per Minute     125-1750

Work Table                           13 1/2"

Motor                                   DC TENV

Mouting                                10 Gauge Steel Legs

Weight                                  103 lbs

Floor Space Requirements       19 1/2" x 39"

Manufacturer's Warranty         1 year all parts and labor

Shipping Dimensions               Box 1  39" x 21" x 20"   96lbs

                                             Box 2  36" x 6" x 6"       30lbs

BM-Series Improvements over the ULTRA series

Upper Arm is 38% lighter and stronger in the direction needed

Lower Arm is 34% lighter and stronger in the direction needed

Pitman Arm is 78% lighter

Motor Bearing Block is integrated into a custom motor

Counterweight is used rather than a flywheel

Adjustable Nose on lower arm. Like the G4 and the JuniorHAWK, the tilt of the blade is infinitely adjustable rather than a two position slot for the lower blade holder as with the ULTRAs.

Features of the BM-26Long 7/8" balde stroke for faster, cleaner cuts that need little or no sanding.

Quick change lower blade holder with two position lower arm gives greater cutting flexibility; faster and easier saw blade positioning.

Large cast aluminum table (13 1/2" diameter) provides a large work area in front of the centrally located blade for better control and more support of your work.

Work table tilts a full 45° both left and right.

Pressure foot gives maximum control even when making the intricate cuts scroll saw users love to make.

Precision crafted steel base and heavy duty legs for greater stability and long lasting durability.

Use any 5" pinless blade to make clean, polished cuts that need little to no sanding.

Front cam over tension realease of the upper blade holder allows you to change blades in seconds which allows you to make inside cuts more quickly and easily than before.

Both the bottom and top blade holder clip into place allowing you to have either blade holder pre loaded for quick blade change out.

Rear cam over for quick release and precise setting of blade tension.

Table-forward design is comfortable to sit at with a shop stool.

Blade feeds from top or bottom.

Adjustable nose allows you to tilt the balde slightly for more aggressive cutting.

Safety spring and stop for safer operation even if the blade breaks.

Flex bellows and Loc-line keeps the cutting area clear for greater visibility and safety.

Machined and casted parts for quality to last a lifetime.

Totally enclosed DC motor gives you complete control of the speed throughout the entire speed range. The motor is TENV to keep out harmful dust. The controller is designed to yield full torque over the entire speed range without over-heating or stalling.

Engineered to run quiet and limit vibration.

Made in the United States of America.
